SEKURANT® PIN TYP 23
Stainless steel anchor point D=43mm, for concrete ceilings, with fixed anchor
- Single anchor point, Ø 42mm, especially for concrete substrates
- Multifunctional: single anchor point and system support in one
- Fastening with screw anchor, AK 1+2, approval for 3 persons
€97.70 Price (net)
€116.26 Price (gross)
Product information "SEKURANT® PIN TYP 23"

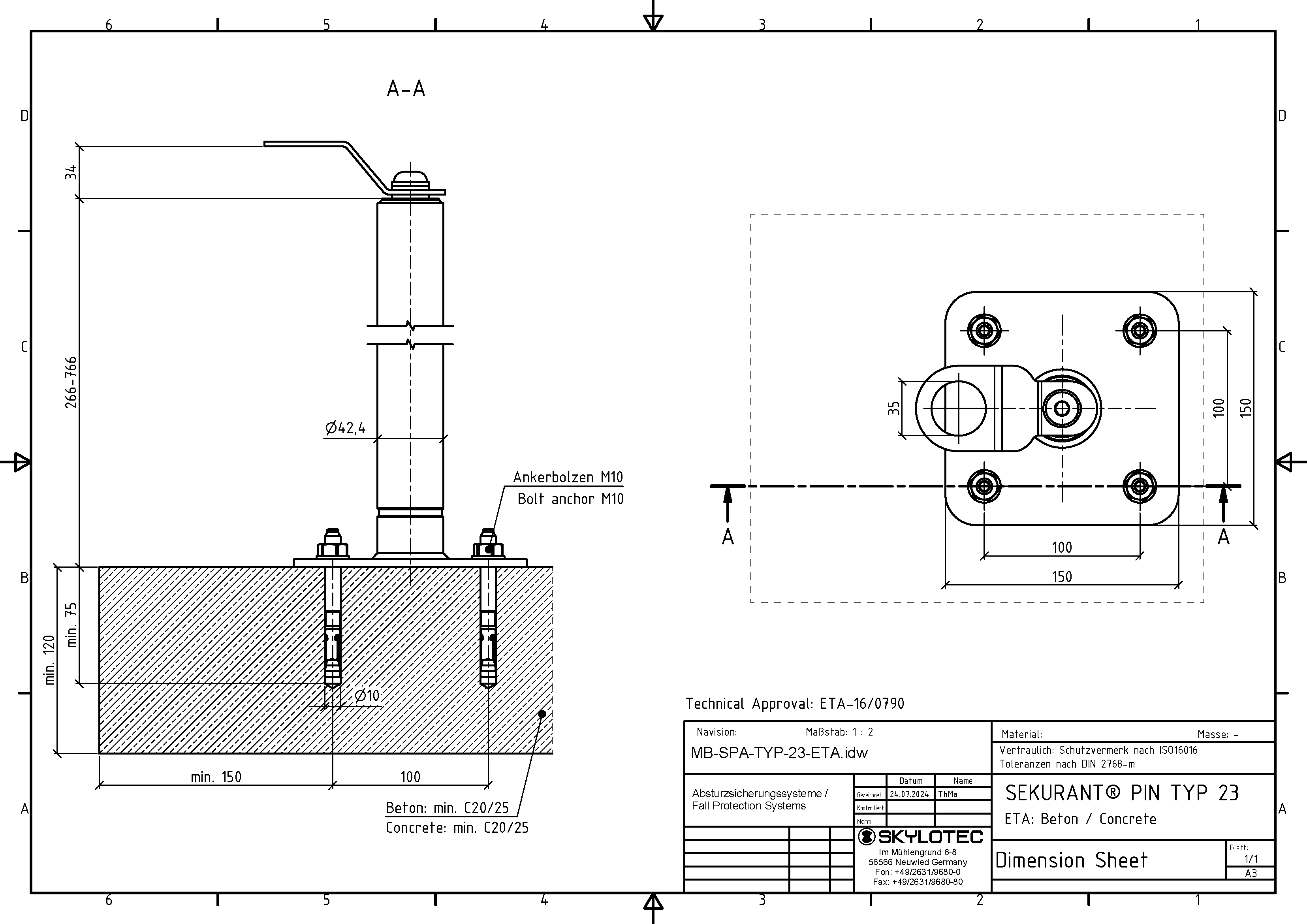

The SEKURANT® PIN TYPE 23 is made of stainless steel, specially designed for concrete substrates (quality min. C20/25, dmin.=120 mm), has a European Technical Assessment (ETA -16/0790) and is tested and certified according to EN 795: 2012, CEN/TS 16415: 2013. It is used as a single anchor point for PPE and as a substructure for rope and rail systems, such as the SKYLINE or SKYRAIL system. In the event of a fall, a controlled, plastic deformation takes place so that the dynamic forces of the fall are optimally damped. In addition, the single anchor point has an anchor eyelet that can be rotated through 360 degrees and a fall indicator. The welded support is supplied ready for installation with 4 screw anchors, so that assembly is extremely time-saving. The anchor point is available in heights of 300 - 800 mm and is therefore suitable for insulation thicknesses of 115 - 615 mm.
- Single anchor point, Ø 42mm, especially for concrete substrates
- Multifunctional: single anchor point and system support in one
- Fastening with screw anchor, AK 1+2, approval for 3 persons
PRODUCT
-
Application areas
-
Rope access technique
-
Thickness mounting base
-
Usable in SEAL PAC
-
Type mounting base
-
Mounting type
-
Min. height
-
Max height
-
Anchor point type
-
Max. number of persons
-
Minimum area required
-
Maximum area required
-
Material
-
Diameter bore
-
Diameter pillar
-
Hole spacing a
-
Hole spacing b
-
Standards
-
E-class number
-
Customs tariff number
-
Construction height
-
Foot plate length
-
Foot plate width
-
Colour
-
Net weight
-
Gross weight
