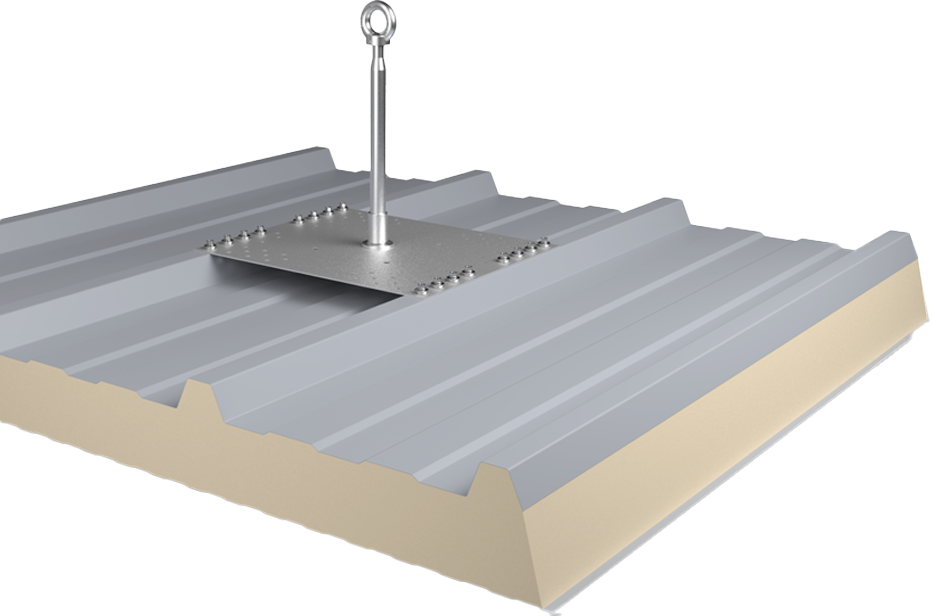

SEKURANT® POINT TYP 15
Stainless steel anchor point for trapezoidal steel and sandwich panels, pre-assembled, with self-tapping screws
€91.80 Price (net)
€109.24 Price (gross)
Product information "SEKURANT® POINT TYP 15"
Der aus Edelstahl, für Stahltrapezprofile (tmin=0,63mm, Profilhöhe: 35/207 – 200/420) oder Stahl-Sandwichpaneele (tmin=0,5mm), konstruierte SEKURANT® POINT 15 ist nach EN 795: 2012, Typ A und CEN/TS 16415: 2013, Typ A geprüft und zertifiziert. Er dient als Einzelanschlagpunkt für PSAgA sowie als Unterkonstruktion (Zwischenstütze) von Seilsystemen. Die vormontierte, verschraubte Stütze wird mit 16 St. Edelstahlbohrschrauben geliefert, sodass die Montage äußerst zeitsparend von oben ausführbar ist. Der leichte, handliche Einzelanschlagpunkt ist in Höhen von 300 – 600 mm erhältlich und eignet sich daher für Dämmdicken 100 bis 400 mm.
- Einzelanschlagpunkt, Ø 20 mm, speziell für Stahltrapezprofile oder Sandwichpaneele
- Multifunktional: Einzelanschlagpunkt und Systemzwischenstütze in einem
- Befestigung: Aufschrauben auf Stahltrapezblech und-Sandwichblechen mit Multi-Mono-Blech, AK 1&2, Zulassung für 2 Personen
PRODUCT
-
Maximum lifetime
-
Rope access technique
-
Min. temperature
-
Type mounting base
-
Max. temperature
-
Mounting type
-
Min. height
-
Max height
-
Anchor point type
-
Max. number of persons
-
Material
-
Diameter bore
-
Diameter pillar
-
Hole spacing a
-
Hole spacing b
-
Standards
-
E-class number
-
Customs tariff number
-
Construction height
-
Foot plate length
-
Foot plate width
-
Colour
-
Net weight
-
Gross weight
