SEKURANT® POINT TYP 5
Stop point made of stainless steel, for timber formwork or OSB board, with screw fastening
- Certified stainless steel anchor point for timber formwork with approval for up to 3 people
- Quick assembly thanks to pre-assembled support and supplied wood screws
- Double function as a single anchor point and intermediate support for cable systems
€98.50 Price (net)
€117.22 Price (gross)
Product information "SEKURANT® POINT TYP 5"

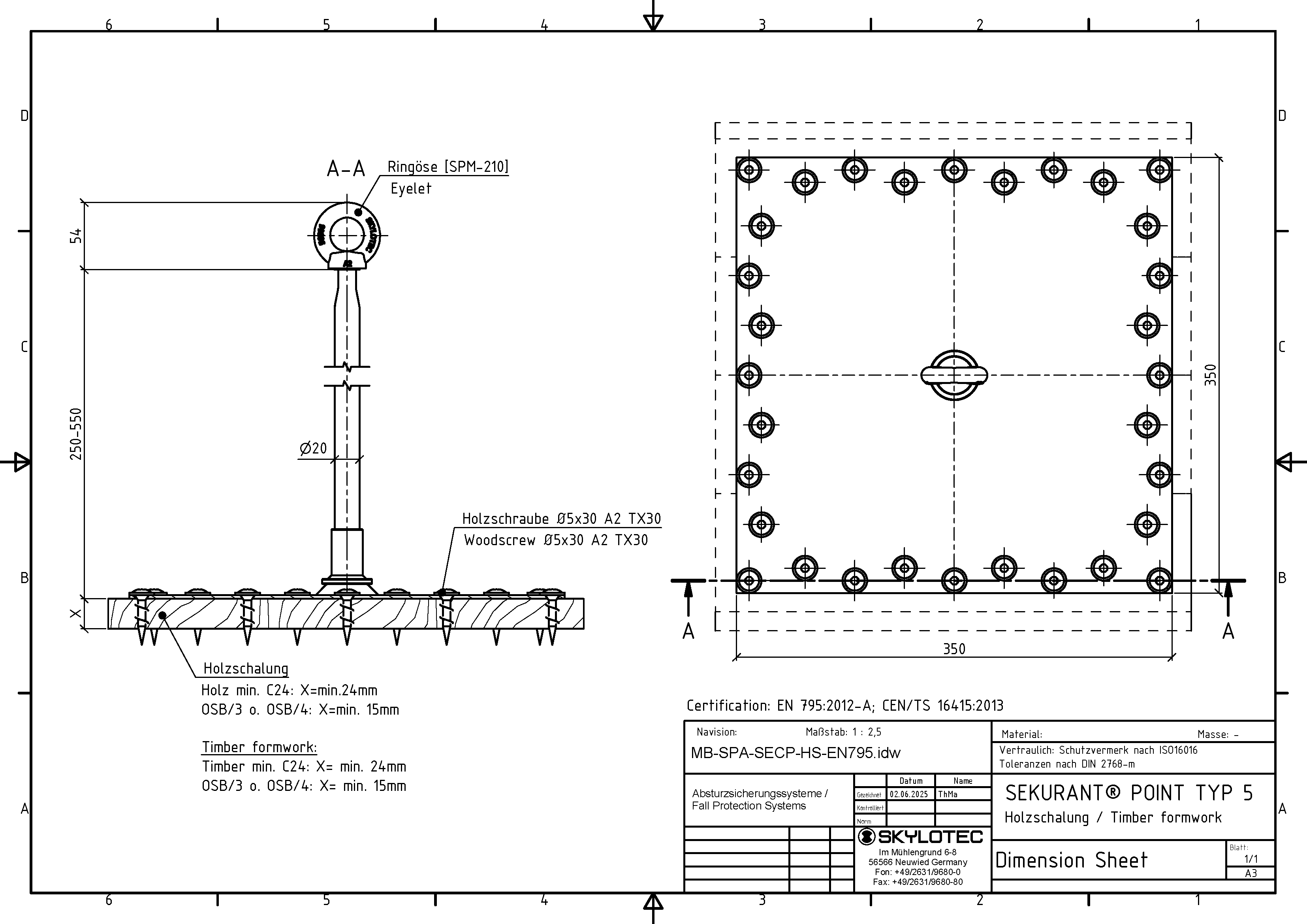

Constructed of stainless steel, specifically for a timber formwork (tmin = 24mm; bmin= 95mm; R = 450 kg/m³), SEKURANT® POINT 5 is tested and certified according to EN 795: 2012, type A and CEN/TS 16415:2013, type A. It serves as a single anchor point for PSAgA as well as a substructure (intermediate support) for rope systems. The pre-assembled, screwed support is supplied ready for installation with 32 pcs. wood screws, making assembly extremely time-saving. The lightweight, handy single stop point is available in heights of 300 - 600 mm and is therefore suitable for insulation thicknesses of 100 - 400 mm.
- Single stop point, Ø 20 mm, especially for wooden formwork
- Multifunctional: single stop point and intermediate system support in one
- Fixing: Unscrewing on wooden formwork or OSB board, AK 1&2, approval for 3 people
PRODUCT
-
Rope access technique
-
Thickness mounting base
-
Min. temperature
-
Type mounting base
-
Max. temperature
-
Min. height
-
Max height
-
Anchor point type
-
Max. number of persons
-
Material
-
Diameter bore
-
Diameter pillar
-
Hole spacing a
-
Hole spacing b
-
Standards
-
E-class number
-
Customs tariff number
-
Construction height
-
Foot plate length
-
Foot plate width
-
Product length
-
Product width
-
Product heigth
-
Colour
-
Net weight
-
Gross weight
