SKYFIX TYP 63
| Stainless steel anchor point, for concrete, with fixed anchors |
- Certified stainless steel anchor point for concrete substrates with ETA approval for up to 3 people
- Quick and secure installation with two fixed anchors supplied
- Can be loaded in all directions and equipped with two large stop openings
€78.80 Price (net)
€93.77 Price (gross)
Product information "SKYFIX TYP 63"

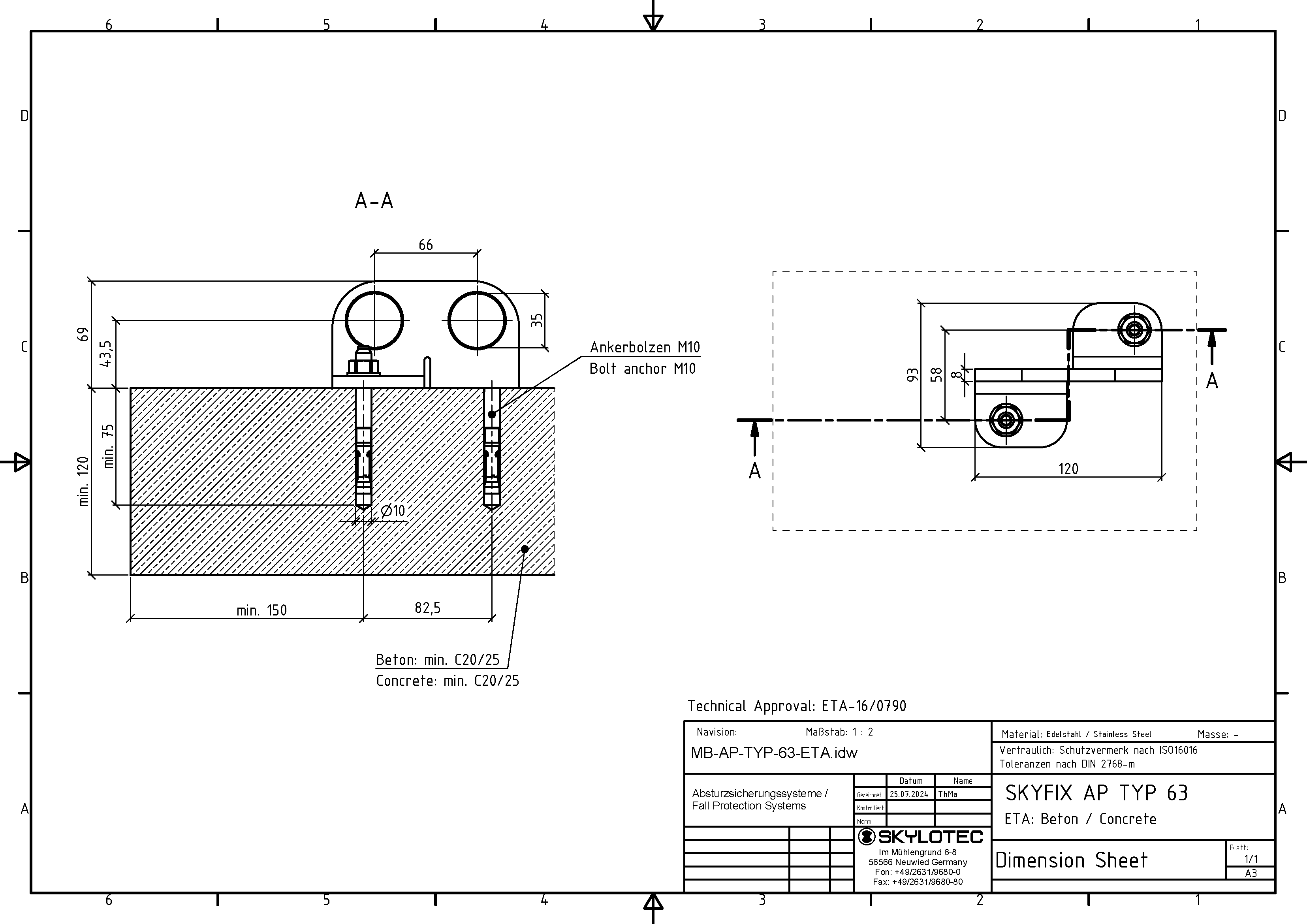

The SKYFIX AP-TYP-63, a corrosion-resistant single anchor point made of stainless steel, was specifically designed for use on concrete surfaces. It has a European Technical Assessment (ETA -16/0790) and was tested and certified in accordance with EN 795: 2012 and CEN/TS 16415:2013. Using the included fixed anchors, it can be quickly and reliably installed on any concrete substrate (minimum grade C20/25, dmin.=120 mm). It can bear loads in all directions and, with its two generously sized openings, can protect up to three people from falls using their personal fall protection equipment (PPE). It is secured using two fixed anchors. The minimum thickness of the substrate is 120 mm.
- Single anchor point, specifically for concrete surfaces
- Mounted with fixed anchors, AK 1, approved for 3 people
PRODUCT
-
Maximum load
-
Rope access technique
-
Thickness mounting base
-
Usable in SEAL PAC
-
Type mounting base
-
Mounting type
-
Anchor point type
-
Max. number of persons
-
Material
-
Diameter bore
-
Diameter pillar
-
Hole spacing a
-
Hole spacing b
-
Standards
-
E-class number
-
Customs tariff number
-
Construction height
-
Foot plate length
-
Foot plate width
-
Colour
-
Net weight
-
Gross weight
