SECU GREEN LINE

SECU®
GREEN LINE

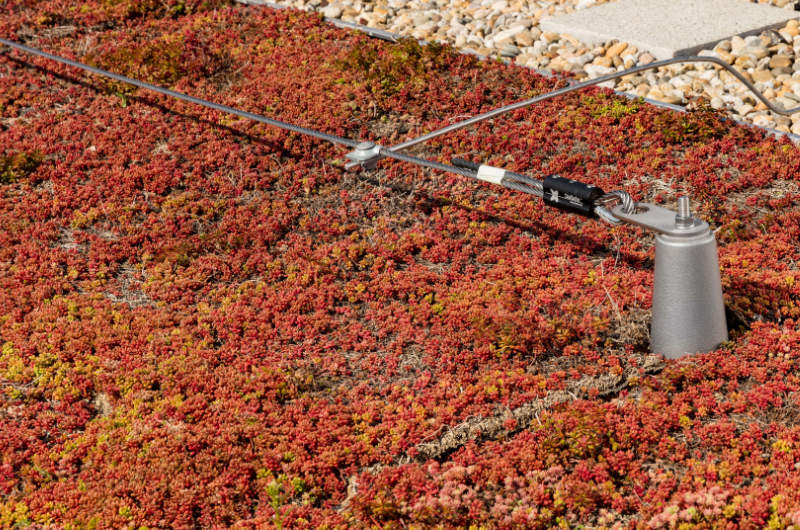

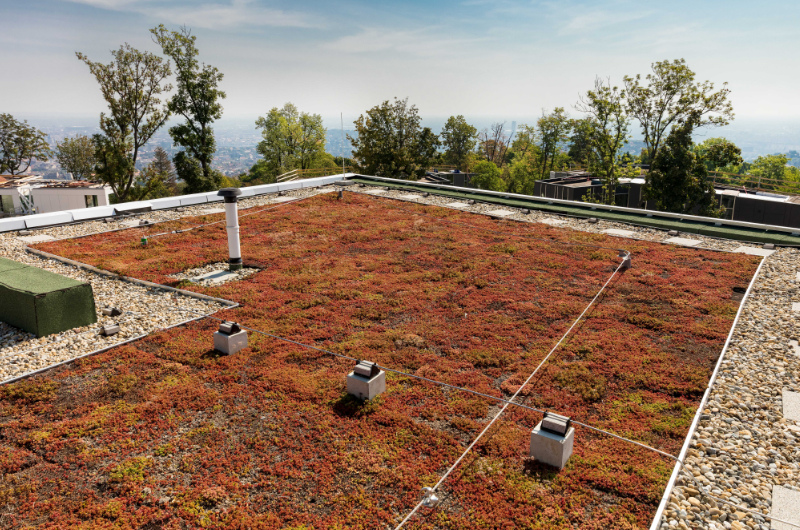

The SECU® GREEN LINE is a horizontal, linear rope safety system that can be driven over, designed for attaching personal protective equipment against falls on flat roofs with a slope of up to 5°. SECU® GREEN LINE was developed specifically for roofs with greenery or gravel and is used to protect several users at the same time.

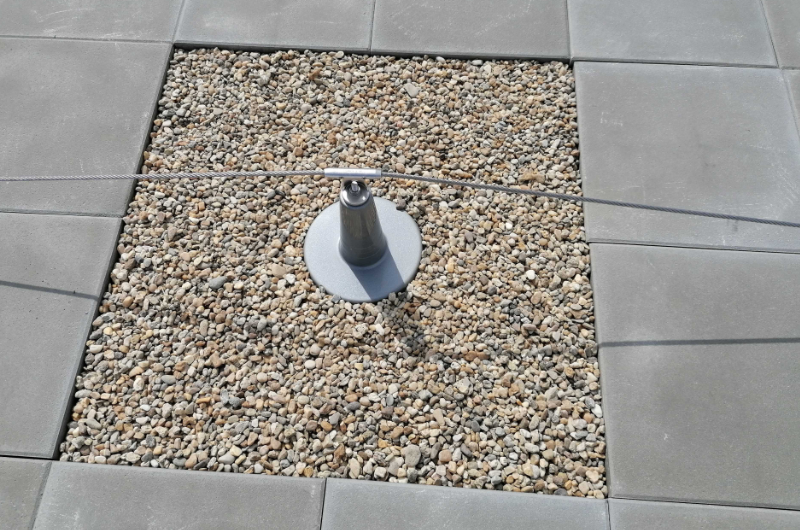

The system is held in place by ballast and can therefore be installed without penetrating the roof waterproofing. In addition, thermal bridges are avoided as no fasteners are required for installation. Thanks to its corrosion resistance, the rope safety system can also be used in coastal regions and industrial areas with acid rain.

Request a quote

MODULAR SYSTEM WITH MAXIMUM SAFETY – THE COMPONENTS OF THE SECU® GREEN LINE

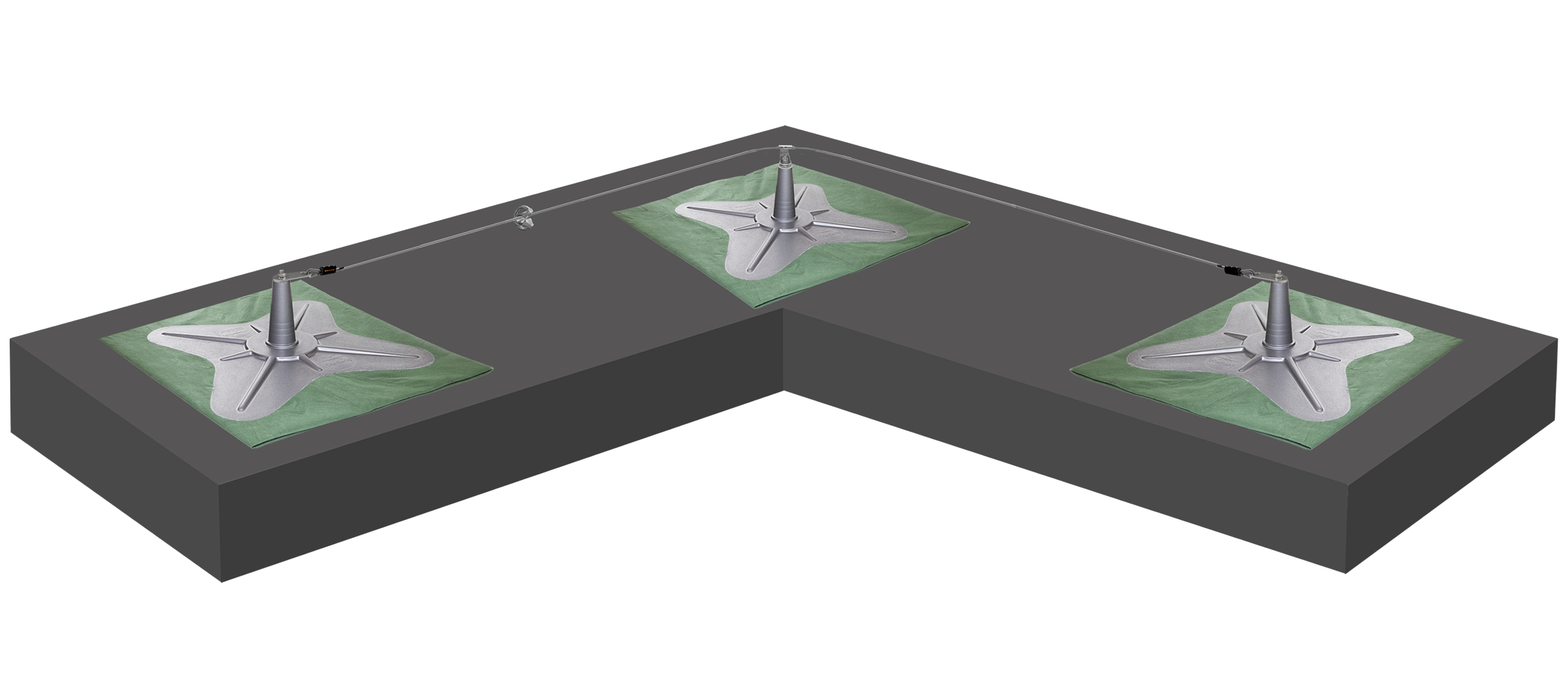

The individual components of the SECU® GREEN LINE form a modular and certified system for horizontal rope safety systems on flat roofs. Each component is specially designed to ensure maximum safety, easy installation and durability – even under demanding conditions. Thanks to their sophisticated design and high-quality materials, the elements can be flexibly combined and adapted to a wide variety of roof structures. Here you will find an overview of all the key components of the SECU® GREEN LINE.

INDIVIDUAL COMPONENTS

SECU® GREEN LINE END BRACKET

End holder, incl. system holder and catch slide

€21.00 net €24.99 gross

Kabel, Spannschloss, Stahldraht, Aufhängung, Gehäuse

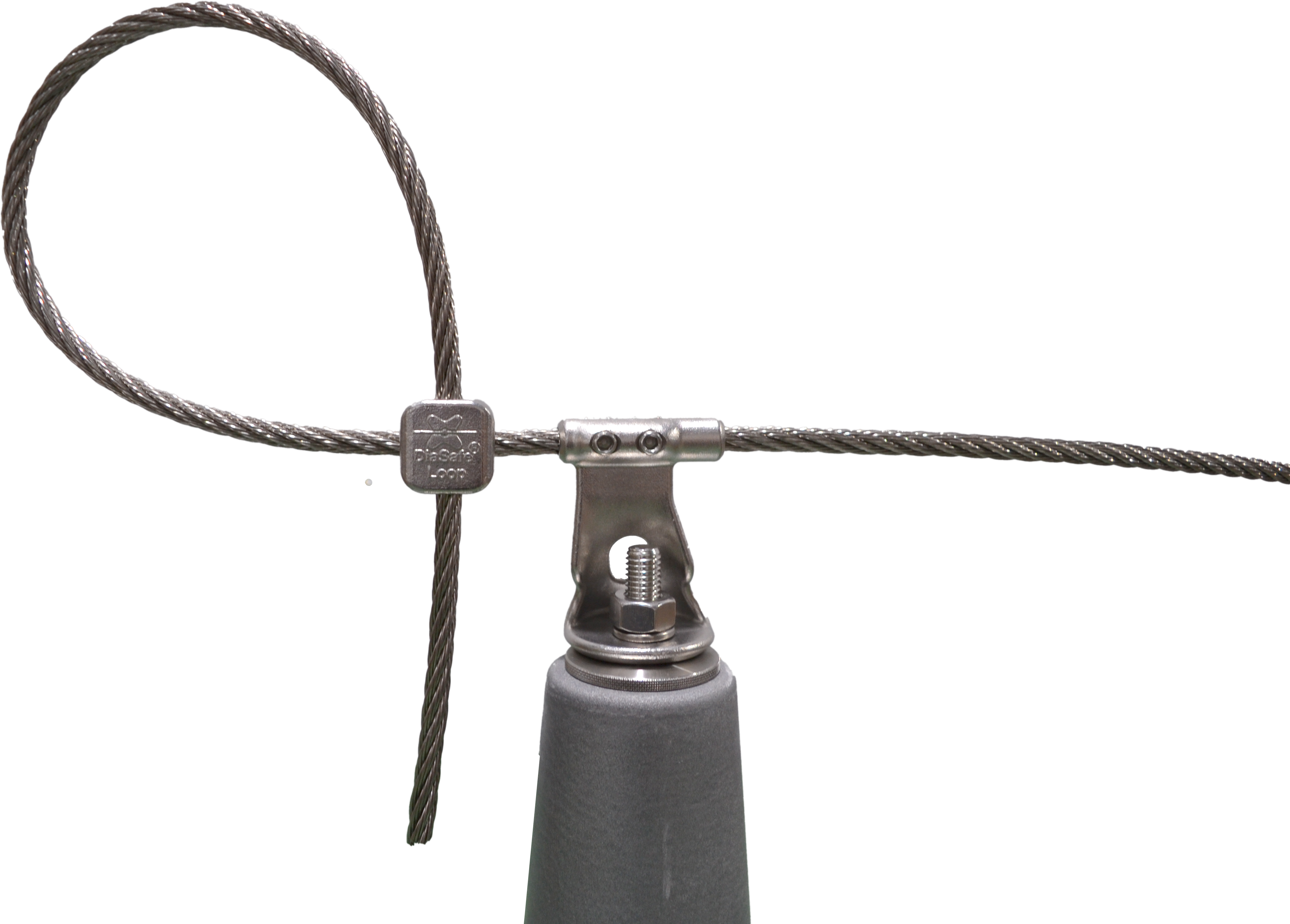

SECU® GREEN LINE LOOP

End cap with optional cable tensioner for secure end attachment of the Ø 8 mm SECU® GREEN LINE stainless steel cable

€526.00 net €625.94 gross

SECU® GREEN LINE LOOP

Stainless steel cable tensioners and end brackets for drive-over horizontal cable safety systems on green or gravel-covered roofs

€27.20 net €32.37 gross

SECU® GREEN LINE BRACKET

Drivable stainless steel intermediate anchor for 10-mm ropes in vertical fall arrest systems, suitable for rectangular rungs measuring 20–31 mm

€83.00 net €98.77 gross

SECU® GREEN Solo

Attachment point for roofs with greenery, gravel, paving for one person, without roof penetration

€367.40 net €437.21 gross

SECU® GREEN Duo

Single anchor point for roofs with greenery, gravel, paving for one person, without roof penetration

€367.40 net €437.21 gross

SECU® GREEN LINE UNIVERSAL BRACKET

Drivable stainless steel universal bracket for cable routing in the SECU® GREEN LINE system; can be used as an intermediate or corner bracket

€95.80 net €114.00 gross

SECU® GREEN LINE SLED

Polyester nonwoven catch mat with a fiberglass-reinforced plastic cone for the SECU® GREEN safety system on green or gravel-covered roofs

€314.30 net €374.02 gross

SECU® GREEN LINE RUNNER

Stainless steel runner for the SECU® GREEN LINE rope safety system, which glides smoothly over the rope and corner brackets

€130.60 net €155.41 gross

YOUR ADVANTAGES AT A GLANCE

• No damage to the roof covering – load-bearing installation without roof penetration

• Ideal for green roofs and gravel roofs – specially developed for sensitive flat roof structures

• Uninterrupted work – drive-over system for maximum freedom of movement

• Safe use by two people at the same time – optimal solution for teamwork

• Reduced installation costs – large support spacing of up to 8 m minimises material and installation costs

STANDARDS & CERTIFICATIONS

✔ Tested in accordance with EN 795:2012 Type C

✔ Certified for use on non-penetrable surfaces

✔ Suitable for temporary and permanent use on green roofs
