SKYLINE 2.0

The SKYLINE 2.0 horizontal lifeline system secures up to three people simultaneously over long distances in areas with a risk of falling. Whether work is required on the floor, ceiling or wall, the SKYLINE 2.0 can be used flexibly in all high-risk areas thanks to its sophisticated design.

It is mainly used on large flat roofs, in production facilities, in maritime applications, at sewage treatment plants and silos, or in logistics. It does not matter whether the substrate is made of wood, concrete or steel.

SKYLINE 2.0 can be configured as either a drive-over or non-drive-over system – for maximum freedom of movement or targeted point protection. All load-bearing components are made of high-quality stainless steel and offer the best protection with minimal maintenance.

Request a quote

MODULAR SYSTEM WITH MAXIMUM SAFETY – THE COMPONENTS OF SKYLINE 2.0

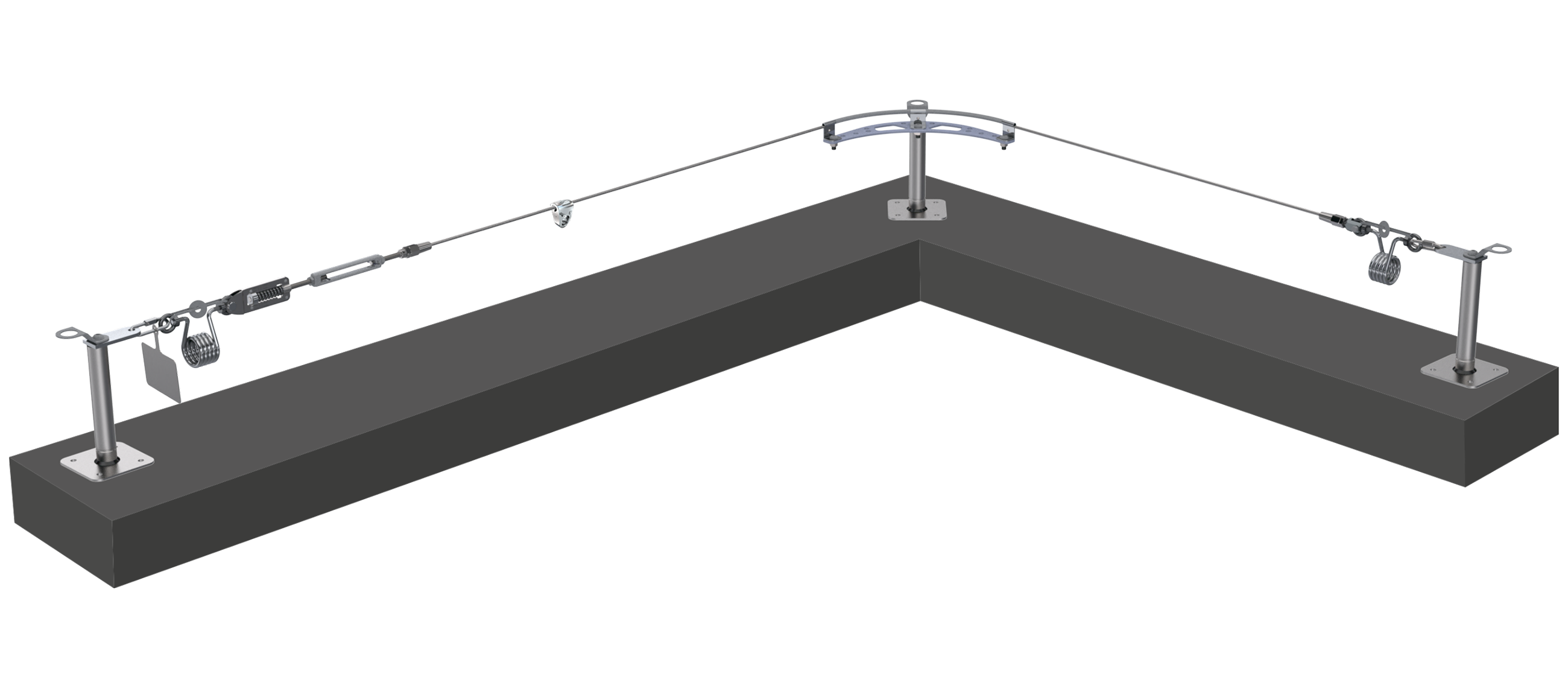

The individual components of SKYLINE 2.0 form a modular and certified system for horizontal rope safety systems on flat roofs. Each component is specially designed to ensure maximum safety, easy installation and durability – even under demanding conditions. Thanks to their sophisticated design and high-quality materials, the elements can be flexibly combined and adapted to a wide variety of roof structures. Here you will find an overview of all the key components of SKYLINE 2.0.

RELATED PRODUCTS

SKYLINE CABLE

8-mm stainless steel rope for the SKYLINE rope safety system, designed for reliable rope guidance in horizontal fall protection systems

Variants from €32.80

€142.60 net €169.69 gross

SKYLINE 2.0 COMPENSATOR

Shock absorber with screw-lock carabiner to reduce the impact force in the horizontal SKYLINE 2.0 rope safety system

€77.50 net €92.22 gross

SKYLINE 2.0 INTERMEDIATE BRACKET

Crossover stainless steel intermediate bracket as cable guide in cable systems on flat roofs

€27.70 net €32.96 gross

SKYLINE RUN

Removable runner for the SKYLINE 2.0 system that can be used at any point and attached or detached with one hand

€154.90 net €184.33 gross

SKYLINE 2.0 TERMINAL FORK HEAD

End point with fork terminal for screwing to the stainless steel cable

€188.10 net €223.84 gross

SKYLINE 2.0 PRE-TENSION ELEMENT

Pretensioning element for correct and sufficient pretensioning of the cable system, incl. force limiter

€124.50 net €148.16 gross

SKYLINE 2.0 CURVE 90°/120°/135° OVERHEAD

Traversable curve element for cable deflection, angle 90°/120°/135°, modular, ready to install with brackets for wall, ceiling, tested and approved

€265.60 net €316.06 gross

SKYLINE 2.0 SCREW TERMINAL LH

Screw terminal with left-hand thread for securely holding the stainless steel cable in the horizontal SKYLINE 2.0 cable safety system

€149.40 net €177.79 gross

SKYLINE 2.0 COMFORT RUNNER

Removable comfort universal runner, for horizontal and overhead use

€446.70 net €531.57 gross

SKYLINE 2.0 T-Anker

Anchorage point for overhead, wall, and floor mounting for direct anchoring to the building structure in the SKYLINE 2.0 rope system

€103.30 net €122.93 gross

SKYLINE 2.0 MOUNTING ANGLE

Stainless steel mounting bracket for expanding the mounting options in the horizontal SKYLINE 2.0 rope safety system

€15.50 net €18.44 gross

SKYLINE 2.0 Adapterplate

Adapter plate for attaching the SKYLINE 2.0 to SEKURANT PIN system supports

€19.90 net €23.68 gross

YOUR ADVANTAGES AT A GLANCE

• Safe teamwork – designed for simultaneous use by up to three people

• Durable and robust – all main components made of corrosion-resistant stainless steel

• Adaptable to any architecture – compatible with a wide variety of surfaces and conditions (on the floor, ceiling or wall)

• Certified safety – tested in accordance with relevant standards for fall protection systems

STANDARDS & CERTIFICATIONS

✔ Tested according to EN 795:2012 Type C

✔ Certified according to CEN/TS 16415:2013 for multi-person use

✔ DIBT

✔ Compliant with UNI 11578:2015
