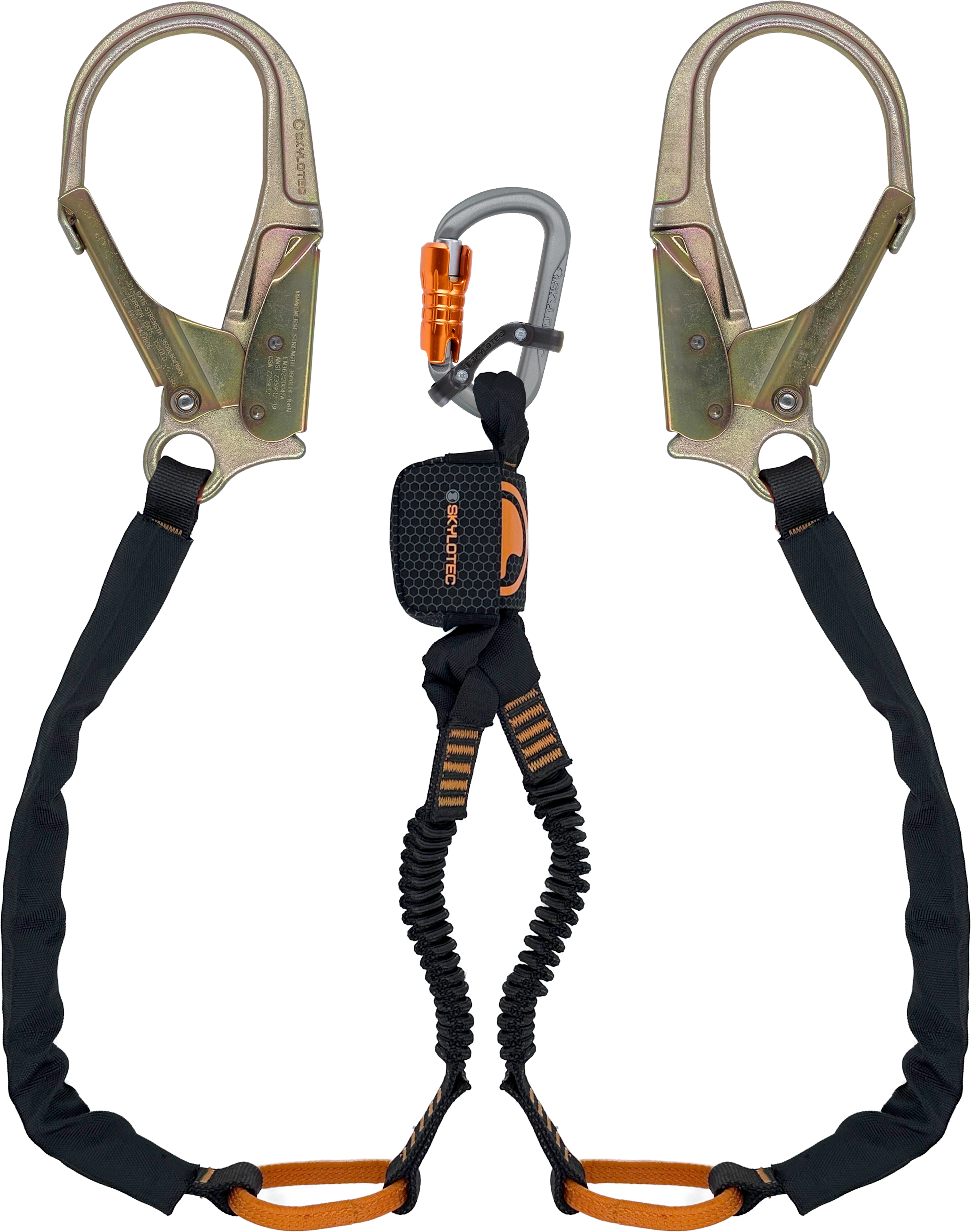

Product information "NANOLINK TIEBACK"

The NANOLINK Lanyard Series sets a new benchmark in fall protection and has been developed for demanding use across all industries. Its compact, ergonomic energy absorber reliably protects users from 50 to 150 kg, closing a critical safety gap that many conventional lanyards leave open. Highly abrasion-resistant materials ensure long-lasting durability even in harsh environments. Multiple variants with different connector options according to EN 362 allow flexible adaptation to individual requirements. NANOLINK combines freedom of movement, robustness, and uncompromising safety – for professionals who rely on their equipment at every height.

PRODUCT

  • Application areas

    Working in confined spaces, Working on masts and towers, Scaffolding, Rope access

  • Fallindicator

    Yes

  • Hand wash

    40 °C

  • Impact force

    6.00 kN

  • Lanyard rope diameter

    25.00 mm

  • Maximum lifetime

    10 years

  • Rescue loop

    No

  • Usable in SEAL PAC

    Yes

  • Min. temperature

    -35 °C

  • Max. temperature

    45 °C

  • Edge approved

    Yes

  • Material

    Steel, Aluminium, Polyester, Dyneema

  • Minimum tensile strength

    22.00 kN

  • Standards

    ANSI Z359.13-2013, EN 355:2002, RFU PPE-R/11.063, RFU PPE-R/11.074

  • E-class number

    40-21-08-10

  • Connector

    FS90 ST ANSI

  • Customs tariff number

    56090000

  • Product length

    1.80 m

  • Length lanyard

    1.80 m

  • Colour

    Grey, Orange, Black

  • Net weight

    2.08 kg

  • Gross weight

    2.23 kg
